   Series 900
  Power Supplies

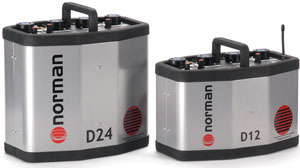

Norman Series 900 Digital Power Supplies

810602 810815 (Discontinued)



 Norman Series 900 Digital Power Supplies (D12 IS DISCONTINUED)

Commercial Photographers need lighting equipment that will provide the power, repeatability and versatility required to handle the endless variety of assignments they encounter on a daily basis. Norman Series 900 equipment has always been able to meet these challenges, and the D12 and D24 Digital Power Supplies are no exception.

These 1200 and 2400 watt-second systems incorporate four lamphead outlets with digital displays and individual on/off switching. Power levels are adjusted through two channels, each with a five-stop range that are adjustable in 1/10 stop increments. You can also combine the two channels to deliver full power to a single lamphead or to create a symmetrical power supply.

Additional Features:

- Compatible with all Series 900 Lampheads and related light modifiers
- Optional software for complete control from your PC
- Photo eye, 1/4" sync jack and optional PocketWizard™ Radio Receiver
- Accurate digital controls with LED display for each lamphead
- Easy to use rotary knobs control power settings and modeling light levels
- Selectable audible and visual flash verification
- Misfire alarm for each lamphead
- Flash repeatability of 1/20 stop at full power
- Slow charge option allows shooting at locations with sub-par wiring
- Full two year limited parts and labor warranty
- Independent safety approvals including ETL, CETL and FCC


Link to Control Panel
Link to Control Panel 		Click for Tech Spec Download
D12R and D24R with built-in PocketWizard receiversNorman D12R (810710 Discontinued) and D24R (810818) models include built-in PocketWizard™ receivers

Norman Power Supplies are also available with built-in PocketWizard™ radio receivers. This unique feature allows these power supplies to be used in the studio or on location without the hassle of sync cords, and it eliminates the risk of inadvertent tripping of your lights from other strobes in the area. The built-in PocketWizard™ receiver can be set to operate from any channel selected on a compatible PocketWizard™ transmitter.

Having the PocketWizard™ receiver built into the D12R and D24R eliminates the need to carry and keep track of a seperate receiver module and compatible cable. Best of all, the built-in unit is powered directly from the power supply, eliminating the need for batteries.

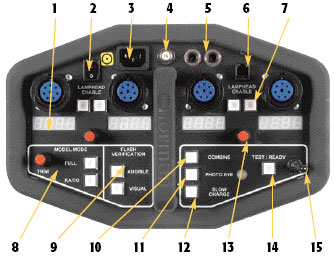

D12 and D24 Control Panels
  1. LED DISPLAY: Displays the power in watt-secondsd12-d24 control panels
    that has been set for that lamphead.
  2. POWER SWITCH: Switches AC power on/off.
  3. AC POWER INLET: 115 volt 60 Hz power input,
    stabilized to provide repeatability of 1/20 stop at full
    power.
  4. RESET 15 AMP CIRCUIT BREAKER: Automatically
    protects the flash circuit against excessive overloads.
  5. SYNC OUTLETS: Two sync outlets for multiple
    cameras or meters.
  6. COMPUTER CONTROL MODULAR JACK: Used to
    connect the power pack to a PC via serial port when
    using Norman Power Supply Communication Software.
  7. LAMPHEAD ENABLE: Allows a lamphead to be
    turned off without unplugging it.
  8. MODELING LAMP: Can be set to full, ratio or off.
  9. FLASH VERIFICATION: Audible verification and visual verification.
  10. COMBINE: When the pack is in combine mode, all of the power in the power pack is distributed evenly to all lampheads
    that are enabled.
  11. PHOTO EYE: Can be switched on to permit remote triggering from another flash source.
  12. SLOW CHARGE: When enabled the units recycle time is increased, which is useful when shooting at a location that has
    sub-par wiring
  13. POWER TRIM KNOBS: Adjusts the flash output from full to -5 f/stops in 1/10 stop increments.
  14. TEST BUTTON/READY LIGHT: Press button to manually flash unit. Switch will light when ready to be triggered.
  15. ANTENNA: For built-in PocketWizard™ Radio Receiver.

Power Supply Communication Software

With the Communication Software Kit, a PC can now be used to run all of the Norman D12 and D24 Power Supplies in your studio. Complete control of every function is available, with an on-screen display that is laid out to look like the control panel of the power supply. Multiple units can be displayed and controlled, each with a unique on-screen position and name that relates to your set-up.

Each kits includes software and a 25' cable to connect the first power supply. Additional cables are available for using your PC to control multiple D12 and D24 Power supplies.		 Power Supply Communication Software
CSK-1
(838819)

SPECIFICATIONS

D12 / D12R

D24 / D24R
Power 1200 watt-seconds 2400 watt-seconds
Power Control Full to –5 f/stops Full to -5 f/stops
Recycle Time at Full Power 2.0 seconds 2.6 seconds
Flash Duration 1/1600 second (full) 1/800 second (full)
Guide Number* 220 @10’, ISO 100 320 @10’, ISO 100
Sync Trigger Photo eye, 1/4" sync jack Photo eye, 1/4" sync jack
Optional Sync Trigger Built-in PocketWizard™ Built-in PocketWizard™
Sync Voltage 6 VDC 6 VDC
Flashtube Quartz Quartz
Modeling Lamp Control Off, ratio, full and trim Off, ratio, full and trim
Supply Voltage 105-125 VAC, 60HZ 105-125 VAC, 60HZ
Consumption 15A 15A
Voltage Stabilization +/- 1% +/- 1%
Overload Protection 15A circuit breaker 15A circuit breaker
Dimensions 7.5" X 7.4" X 11.7" 10.5" X 7.4" X 11.7"
Weight 12.3 pounds 18.2 pounds

*The guide number stated was determined by measuring the bare bulb at 10 feet using ISO 100.
See individual reflectors in this catalog for guide numbers using specific light modifiers at various power settings.

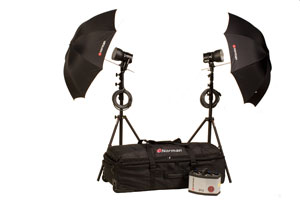

D12-2 kit

D12-2 Kit
812959
1200 Watt-Seconds Umbrella Kit

  • 1 - D12 Power Supply
  • 2 - IL2500 Lamp Heads
  • 2 - 5DL Reflectors
  • 2 - LS226-1 Lightstands
  • 2 - WB45 Umbrellas
  • 1 - NL03CS Wheeled Case

D12R-2 Kit
812963
Same as D12-2 Kit except with a D12R Power
Supply with built-in PocketWizard™ receiver.

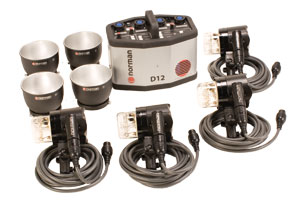

D12-4 Kit
812967
1200 Watt-Seconds 4 Light Kit

  • 1 - D12 Power Supply
  • 4 - IL2500 Lamp Heads
  • 4 - 5DL Reflectors

812971
Same as D12-4 Kit except with a D12R Power
Supply with built-in PocketWizard™ receiver .

 D12-4 kit

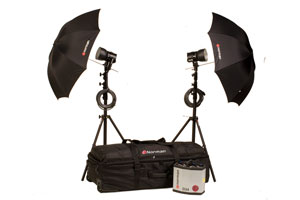

D24-2 kit

D24-2 Kit
812975
2400 Watt-Seconds Basic Kit

  • 1 - D24 Power Supply
  • 2 - IL2500 Lamp Head
  • 2 - 5DL Reflectors
  • 2 - LS226-1 Light Stand
  • 2 - WB45 Umbrella
  • 1 - NL03CS Wheeled Case

D24R-2 Kit
812979
Same as D24-2 Kit except with a D24R Power
Supply with built-in PocketWizard™ receiver

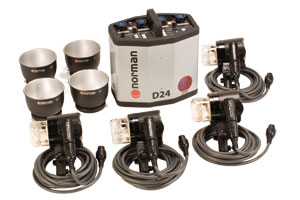

D24-4 Kit
812983
2400 Watt-Seconds 4 Light Kit

  • 1 - D24 Power Supply
  • 4 - IL2500 Lamp Head
  • 4 - 5DL Reflectors

D24R-4 Kit
812987
Same as D24-4 Kit except with a D24R Power
Supply with built-in PocketWizard™ receiver

 D24-4 kit
