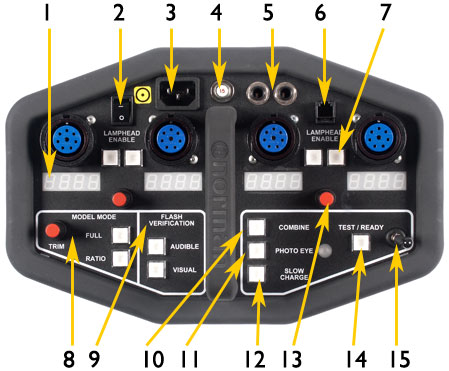

D12 and D24 Control Panels

1- LED Display: Displays the power in watt-seconds that has been set for that lamphead.

2- Power Switch: Switches AC power on/off. Internal memory retains settings.

3- AC Power Inlet: 115 volt 60HZ power input, stabilized to provide repeatibility of 1/20 stop at full power with AC line voltage fluctuations between 105-125 volts.

4- Reset 15 Amp Circuit Breaker: Automatically protects the flash circuit against excessive overloads.

5- Sync Outlets: Two sync outlets available for triggering from multiple cameras or meters.

6- Computer Control Modular Jack: Used to connect the power pack to a PC via serial port when using Norman Power Supply Communication Software.

7- Lamphead Enable: Allows a lamphead to be turned off without unplugging it.

8- Modeling Lamp: Can be set to full, ratio or off. Trim control brightens or dims without losing ratio.

9- Flash Verification: Audible verification will beep twice when the unit has returned to full power. Visual verification will cycle the modeling on and off, and then return to its previous state.

10- Combine: When the pack is in combine mode, all of the power in the power pack is distributed evenly to all lampheads that are enabled.

11- Photo Eye: Can be switched on to permit remote triggering from another flash source.

12- Slow Charge: When enabled the units recycle time is increased, which is useful when shooting at a location that has sub-par wiring.

13- Power Trim Knobs: Adjusts the flash output from full to -5 f/stops in 1/10 stop increments

14- Test Button/Ready Light: Press button to manually flash unit. Switch will light when ready to be triggered.

15- Antenna: For built-in PocketWizard™ Radio Receiver.
