 Norman A200C
Norman has a reputation for making rugged portable flash systems and the A200C is no exception. This 200 watt-second system is a good fit for wedding, press, commercial and other applications where quality professional portable lighting is used.
This kit combines all of the items you will need to be operational, including the P200C Power Supply with contour shoulder strap, LH2K Lamphead with 2D Reflector, B4126 Battery, SC Super Charger and all related cables.
Also available is the A200C-M kit with a 50 watt modeling lamp in the reflector. In this kit we substitute a LH2K-ML Lamphead with modeling lamp circuit and a 2D-ML reflector with a 50 watt quartz modeling lamp.
Many other options are available for use with this system, including the wide selection of light modifiers and other accessories.
| Model # (Part #) |
Description |
Battery Pack |
Battery |
Lamp Head |
Reflector |
Strap |
Charger |
A200C
(810797) |
Basic Kit |
P200C
(810830) |
B4124
(812866) |
LH2K
(812220) |
2D
(810701) |
R4127
(810686) |
SC-200C
(812584) |
A200C-M
(810803) |
Modeling Light Kit |
P200C
(810830) |
B4124
(812866) |
LH2K-M
(812831) |
2D-ML
(810704) |
R4127
(810686) |
SC-200C
(812584) |
A200CR
(810806) |
PocketWizard® Kit |
P200C
(810830) |
B4124
(812866) |
LH2KR
(812225) |
2D
(810701) |
R4127
(810686) |
SC-200C
(812584) |
|
Norman A400B
Able to deliver up to 400 watt-seconds of power, the Norman A400B is our most popular Battery Portable system. Designed for the professional, the 400B is built tough for many years of hard use. And all Norman Battery Portable systems can be charged from 115 or 230 VAC and are CE tested for assignments almost anywhere.

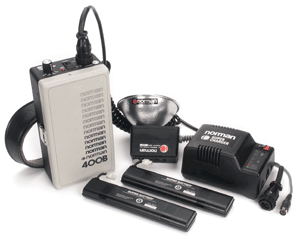

The A400B kit includes the P400B Power Supply with contour shoulder strap, LH52K Lamphead with 2D Reflector, two B5122 Batteries, SC Super Charger and all related cables. The A400B-M modeling light version substitutes a LH52K-ML Lamphead with modeling lamp circuit and a 2D-ML reflector with a 50 watt quartz modeling lamp.
As part of our Series 500 equipment line, the A400B can be used with a wide assortment of accessory items.
| Model # (Part #) |
Description |
Battery Pack |
Battery |
Lamp Head |
Reflector |
Strap |
Charger |
A400B
(810809) |
Basic Kit |
P400B
(812332) |
2 - B5122
(812863) |
LH52K
(810782) |
2D
(810701) |
R4127
(810686) |
SC-400B
(810860) |
A400B-R
(810903) |
PocketWizard® Kit |
P400B
(812332) |
2 - B5122
(812863) |
LH52KR
(810785) |
2D
(810701) |
R4127
(810686) |
SC-400B
(810860) |
A400B-M
(810821) |
Modeling Light Kit |
P400B
(812332) |
2 - B5122
(812863) |
LH52K-M
(812241) |
2D-ML
(810704) |
R4127
(810686) |
SC-400B
(810860) |
A400BR-M
(810812) |
Modeling Light/
PocketWizard® Kit |
P400B
(812332) |
2 - B5122
(812863) |
LH52KR-M
(812794) |
2D-ML
(810704) |
R4127
(810686) |
SC-400B
(810860) |
|
 Available with built-in PocketWizard™ Transceivers
All versions of the Norman Battery Porable Kits are also available with lampheads that include built-in PocketWizard™ Radio Transceivers. You can now trip single or multiple remote flash systems without the hassle of trip cords or photo eyes. This sytem can be set to operate from any channel selected on your PocketWizard™ transmitter, and the Transceiver sends confirmation whenever a signal is received. |
| Specifications |
200C |
400B |
Maximum Watt-Seconds
Power Output Levels
Sync Voltage
Battery Type
Battery Operating Voltage
Power Pack Dimensions
Power Pack Weight
|
200
200, 100 and 50
12 VDC
Sub-C Nickel Cadmium
12 VDC
8.13" H x 4.75" L x 2.25" W
3.75 lbs
|
400
400, 200, 100 and 50
5 VDC
SubC Nickel Cadmium
12VDC
10.5" H x 5.25" L x 3.25" W
6 lbs
|
| Recycle Time |
200C |
400B |
400 watt-seconds
200 watt-seconds
100 watt-seconds
50 watt-seconds
|
--------
1.5 seconds
.80 seconds
.35 seconds
|
3 seconds
1.5 seconds
.80 seconds
.35 seconds
|
| Flash Duration |
200C |
400B |
400 watt-seconds
200 watt-seconds
100 watt-seconds
50 watt-seconds |
--------
1/900 second
1/1800 second
1/3600 second
|
1/900 second
1/1800 second
1/3600 second
1/7200 second |
|
|
|
| |
|
|
 |
