   Battery Portable Systems
  Battery Portable Lampheads
Battery Portable Lampheads
Norman offers spare and replacement Lampheads that include a 5' coiled cord and a flashtube. For use with our Series 450 P200B and P200C we have the LH2K standard Lamphead and the LH2K-M version with the modeling lamp circuit. For the Series 500 P400B, we have the standard LH52K Lamphead and the LH52K-M Lamphead for use with modeling lamp reflectors.
Norman LH2 (810827) and LH52 (810779) Lampheads include a flash test button, ready light, twin blade sync connector and locking knob for reflectors. The LH2K-M (812831) and LH52K-M (812241) Modeling Lamp Lampheads also include a connector and switch for the modeling lamp.
Upgrade to Built-in PocketWizard™

Now, any existing Norman Battery Portable can be upgraded to wireless actuation by adding a Lamphead with the built-in PocketWizard™ Radio Transceiver. These new Lampheads plug directly into existing Norman Battery Portable Power Supplies with no additional modifications.



Battery Portable Lampheads
Norman offers spare and replacement Lampheads that include a 5’ coiled cord and a flashtube. For use with our Series 450
P200B and P200C we have the LH2K (812220) standard Lamphead and the LH2K-M (812831) version with the modeling
lamp circuit. For the Series 500 P400B, we have the standard LH52K (810782) Lamphead and the LH52K-M (812241)
Lamphead for use with modeling lamp reflectors.


LH2 / LH52
Model For Power
Supply		 W-S Rating Flashtube Cord
LH2 (810827) Standard P200C
(810830)		 200WS FT120
(810920)		 20’ Straight
LH52 (810779) Standard P400B
(812332)		 400WS FT400
(812822)		 20’ Straight
LH2K / LH52K
Model For Power
Supply		 W-S Rating Flashtube Cord
LH2K (812220) Coil Cord P200C
(810830)		 200WS FT120
(810920)		 5’ Coiled
LH52K (810782) Coil Cord P400B
(812322)		 400WS FT400
(812822)		 5’ Coiled
LH2KR / LH52KR
Model For Power
Supply		 W-S Rating Flashtube Cord
LH2KR (812225) with
PocketWizard™		 P200C
(810830)		 200WS FT120
(810920)		 5’ Coiled
LH52KR (810785) with
PocketWizard™		 P400B
(812332)		 400WS FT400
(812822)		 5’ Coiled

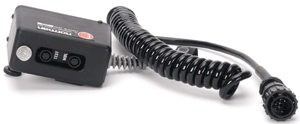

LH2K-M / LH52K-M
Model For Power
Supply		 W-S Rating Flashtube Cord
LH2K-M (812831) with modeling
lamp		 P200C
(810830)		 200WS FT120
(810920)		 5’ Coiled
LH52K-M (812241) with modeling
lamp		 P400C
(812332)		 400WS FT400
(812822)		 5’ Coiled
LH52KR-M
Model For Power
Supply		 W-S Rating Flashtube Cord
LH2KR-M (812837) with
PocketWizard™ & modeling lamp		 P200C
(810830)		 200WS FT120
(810920)		 5’ Coiled
LH52KR-M (812794) with
PocketWizard™ & modeling lamp		 P400C
(812332)		 400WS FT400
(812822)		 5’ Coiled
